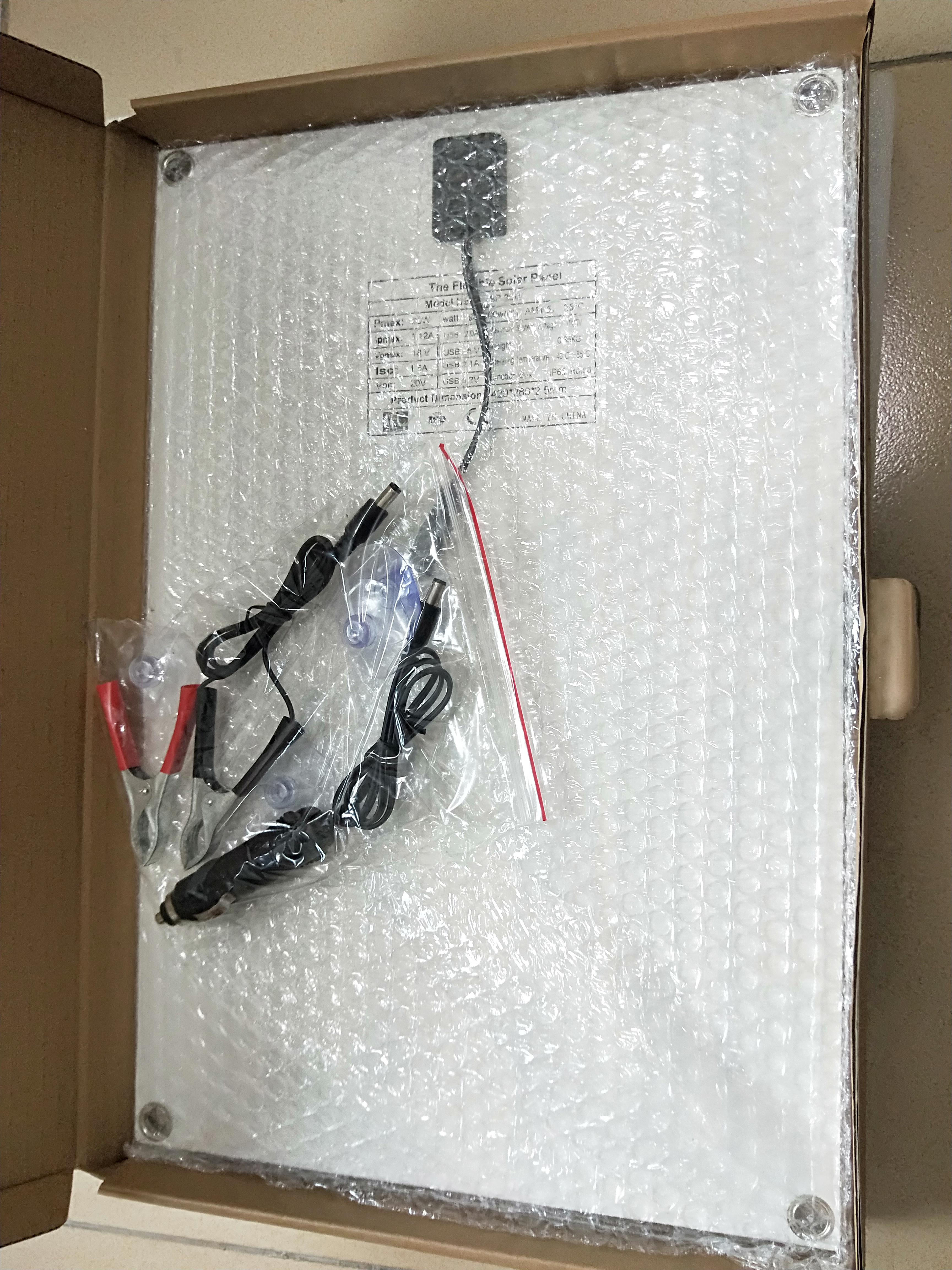

20W MONO Peel And Stick Thin Film Solar Panels Customized Output Peak Voltage

Ask Lasest Price
Brand Name :	JYG
Model Number :	JYG-20W-M
Certification :	CE,ROHS
Price :	negotiable
Payment Terms :	Western Union, , T/T, L/C
Supply Ability :	10000pcs/month
Delivery Time :	7-15days

Add to Cart

Product Details
Company Profile

20W MONO Peel And Stick Thin Film Solar Panels Customized Output Peak Voltage

20w12v sunpower solar cells high efficiency flexible solar panel, High Quality Semi Flexible Solar Panel

Technical features
Max -Power:	20W	100W	160w
Peak power(WP):	20W	100W	160w
Voltage at Pmax(Vmp):	17.2V	17.2V	17.7V
Current at Pmax(Imp):	1.16A	5.89A	9.06A
Open circuit voltage(Voc):	20.4V	20.4V	20.6V
Short circuit current(Isc):	1.26A	6.24A	9.60A
Module Efficiency:	14.4%	15.9%	17.6%
Max System Voltage(VDC):	100VDC
Solar cells:	mono
Temperature Coefficient of Pmax:	-0.393%/℃
Temperature Coefficient of Voc:	-0.30%
Temperature Coefficient of ISC:	+0.039%/℃
Nominal Operating Cell Temperature:	45+/-2℃
Min power tolerance:	±3%
Data under standard testing conditions(STC):1000W/M²; 1.5AM
Mechanical Characteristics
Type of Connector:	MC4 Connector
Dimension A x B x C:	1608603mm	*9406703mm*	13606703mm
Weight: (kg)	0.8KG	2.08KG	2.98KG
Contruction:	positive : TPT EVA back : TPT
Contruction:	positive : TPT EVA back : TPT
No.of mounting Holes in Frame:	4	4	6
Junction Box(protection degree):	IP67
Qualification Test Parameters
Dielectric Insulation Voltage:	100VDC
Operating Temperature:	-40℃·80℃
Max load:	-----------------
Hailstone impact:	-----------------
Warranty:For 1 year and service life of 10 years.

The solar panels that our company has been producing and selling at present include PET Sunpower/Mono flexible solar panel, ETFE Sunpower/Mono flexible solar panel, Mono/Poly glass solar panel, Mini solar panel, Solar charger and Foldable/Portable/Removeable solar Panel and so on.

Our flexible solar panels are widely used in many cars, sailboat, tent etc projects, glass solar panel are mostly used in systems projects. Our company's best-selling products are flexible solar panels and glass solar panels. Among them, 20W,50w, 100w, 120w, 150w, 200w and 300w are deeply loved by consumers.

If the page you are entering is not the solar panel you are currently looking for, you can also send me an enquiry about the solar panel you are interested in or contact me directly via the contact details below. Please contact me if you have any requirements or questions. I will reply you in the first time. Best regards
