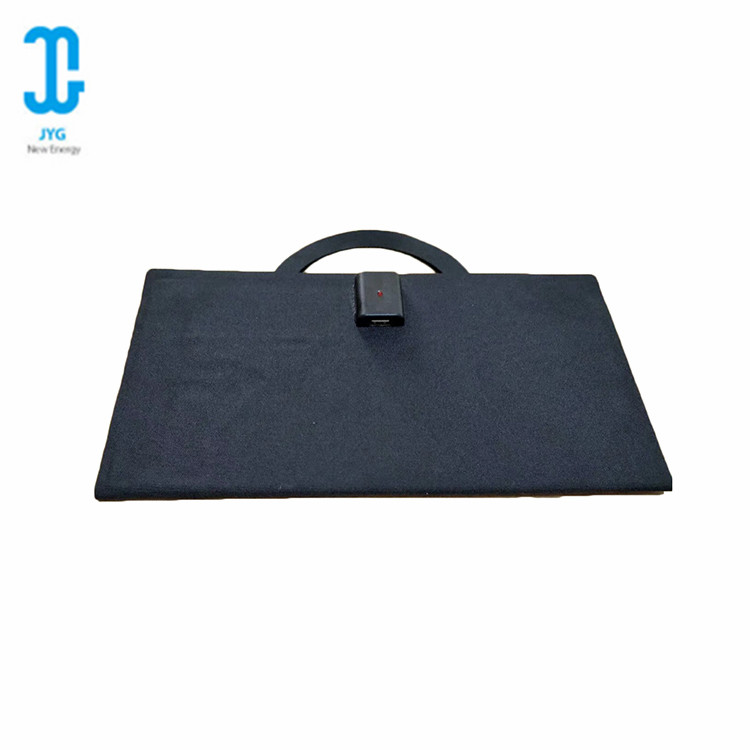

12 Volt Folding Solar Panels 2A Portable Solar Electric Panels For Home

Ask Lasest Price
Brand Name :	JYG
Model Number :	JYG-12W-M
Certification :	CE,ROHS
Price :	negotiable
Payment Terms :	Western Union, , T/T, L/C
Supply Ability :	Mini custom solar panels
Delivery Time :	7-15days

Add to Cart

Product Details
Company Profile

12 Volt Folding Solar Panels 2A Portable Solar Electric Panels For Home

12 volt folding solar panels portable foldable solar panels solar panels for home

1, Battery and Generator Ready with three choices: ONE – build-in charge controller makes it ready for 12V battery; TWO -MC4 connector design for a solar generator; THREE -charge 12V RV battery and solar generator simultaneously
2, Portable: two 50 watts solar panels attached in pairs for portability. Case design facilitates transportation and helps keep solar panel safe when storing
3, Waterproof: the kit is IP65 waterproof, outdoor durability balances portability with solid frame build; 20A waterproof charge controller on the back
4, Easy Set-up: pre-installed stand allows for easy and quick set-up. MC4 connectors or Anderson plug allow easy installation to RV / camper / trailer battery unit. For pre-wired RV or camper, please contact JYG for adapters
flex solar panel

Date Sheet of solar panel
Electrical Date

Mono	JYG-M-12W
Nominal peak power(Pmax)	12W
Maximum Power Voltage(Vmp)	5V
Maximum Power current(Imp)	2.2A
Short-circuitcurrent(Isc)	2.6A
Open-cicuit Voltage(Voc)	6V
Optimized cell efficiency	17%-19%

Limits

Operating temperature	-40°C to +85°C
Maximum system voltage	1000VDC

Temperature and Coefficients

NOCT	48°C+/-2°C
Current temperature coefficient	%/K	0.06+/-0.01
Voltage temperature coefficient	mV/K	-(78+/-10)
Power temperature coefficient	%/K	-(0.5+/-0.05)

Additional Data

Number of cells and type of connection	156156/125125
Dimensions(MM)	28515010MM/ 0.8 kgs
Weight(KG)	12W:0.8kg

Guaranteed Power Output	15 year:90% of its nominal power rating
Guaranteed Power Output	25 yesr:80% of its nominal power rating
Warranty Period	Replacement for manufacturing defects within 5 years
Certificates	CE,RoHS,FCC,TUV
Cells	monocrystalline silicon photovoltaic cell

ar charger/solar panel phone charger/cell phone solar charger
