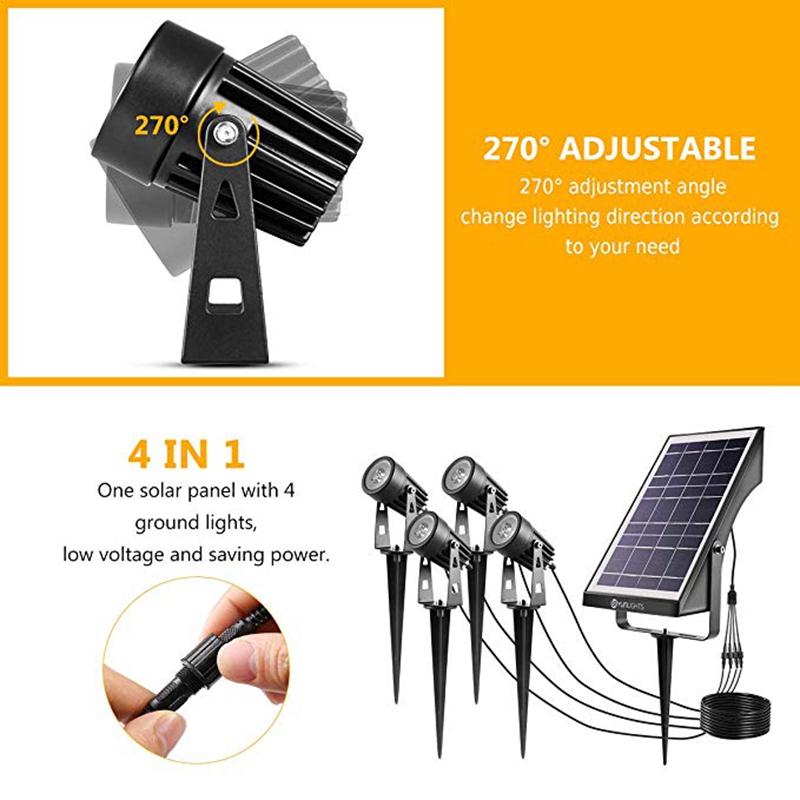

Solar Led Light Waterproof Outdoor Spotlight Auto On/Off for Yard
Garden Pathway
Features:
- Smart photosensitive control, automatically turn on&off
according to the ambient brightness, charge automatically during
daytime.
- 360 degrees RF remote control at will, distance could reach up to
20 meters, one remote controller can manage many lights.
- Manually turn off the remote controller to meet the need of daytime
lighting.
- Built-in high-quality lithium battery with high safety factor, good
performance and long lifetime.
- Low voltage, no electric shock hazard.
- Easy to install, wall-mounted, or fix it in the ground, wide
application.
Structure:
1:Solar Panel 2:Output Line 3:Bracket 4:Screw 5:Screw Hole
6:Wall-mount Hole 7:DC charging port 8: On/Off 9: Indicator 10:
scupper
Usage:
1. Install the lamp at required place, then fix the solar panel on
the wall or ground. It must be installed in a position where there
is sufficient sunlight to ensure that it can be properly charged
every day.
2. After installation, connect the solar panel and lamp, then turn
on the power on the rear housing.
3. If you want to test it during the day after installation, just
use something to completely cover the solar panel, then the light
will be on. Or press”Off” on the remote controller to close the
photosensitive control, then press”On” to light up.
4. When light needs to be turned on during the day, but since there
is sunlight, it can not light up, so you can press”Off” on the
remote controller to close the photosensitive control, then
press”On” to light up.
Package Contains:
Solar Panel*1 Lamp*4 Remote Controller*1 Spike*5 User Manual*1
Screw Kit*1
Specifications:
| LED Quantity | 4 |
| Solar Panel | 6V/5W |
| Battery | 3.2V/6000mAh |
| Lighting time | 8~20H |
| Lighting projection distance | 15M |
| Remote control distance | ˃20M |
|
| RF Remote Controller | Function Description |
| On: To open light |
| Off: To close light/close photosensitive control |
| 50%/75%/100%: Brightness adjustment of 50%/ 75% (default
brightness)/100% |
| 3H / 4H / 5H / 6H /8H / 10H:Timing settings, default 6H |
Tips:
1. Please install the solar panel to the places that have
sufficient sunlight.
2. Since this product is charged by solar energy, If 2 consecutive
days without sunlight and the lamp can’t light up, it is a normal
situation.
3. Automatically light up at night, when bad weather and no
lighting needs at night, please turn if off.
4. The default lighting brightness is 75% and timing is 6 hours, it
is a normal status that the light will flicker when you set timing.
5. Charging time is determined by the intensity and duration of
sunlight, the stronger the sunlight, the faster the charging speed
will be, otherwise, it will be slow.
6. Lighting time depends on the selected brightness, the higher the
brightness, the shorter the lighting time, on the contrary,
lighting time will be longer.
7. When the battery voltage of the remote controller is
insufficient and it doesn’t work, it is a normal phenomenon.
