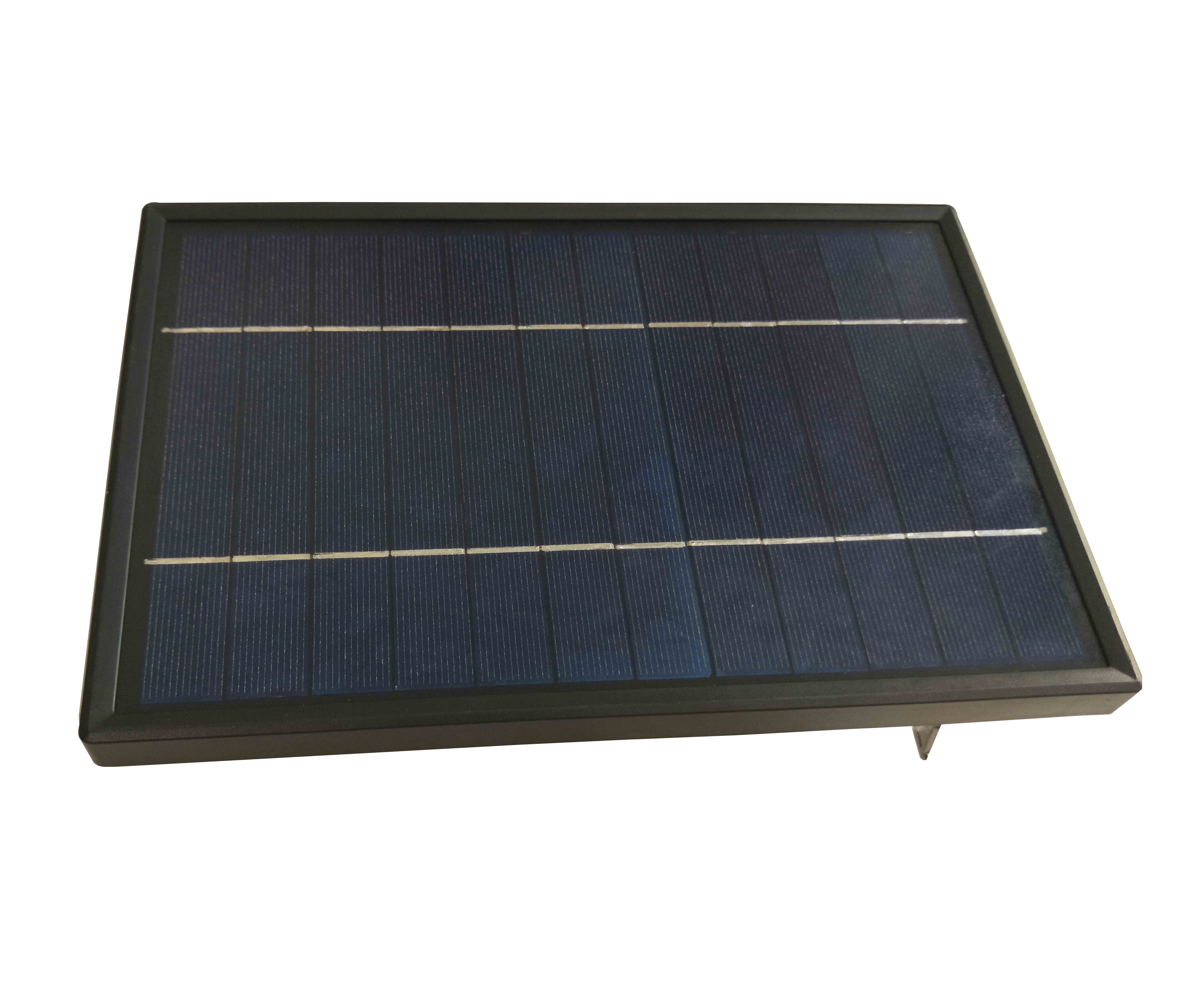

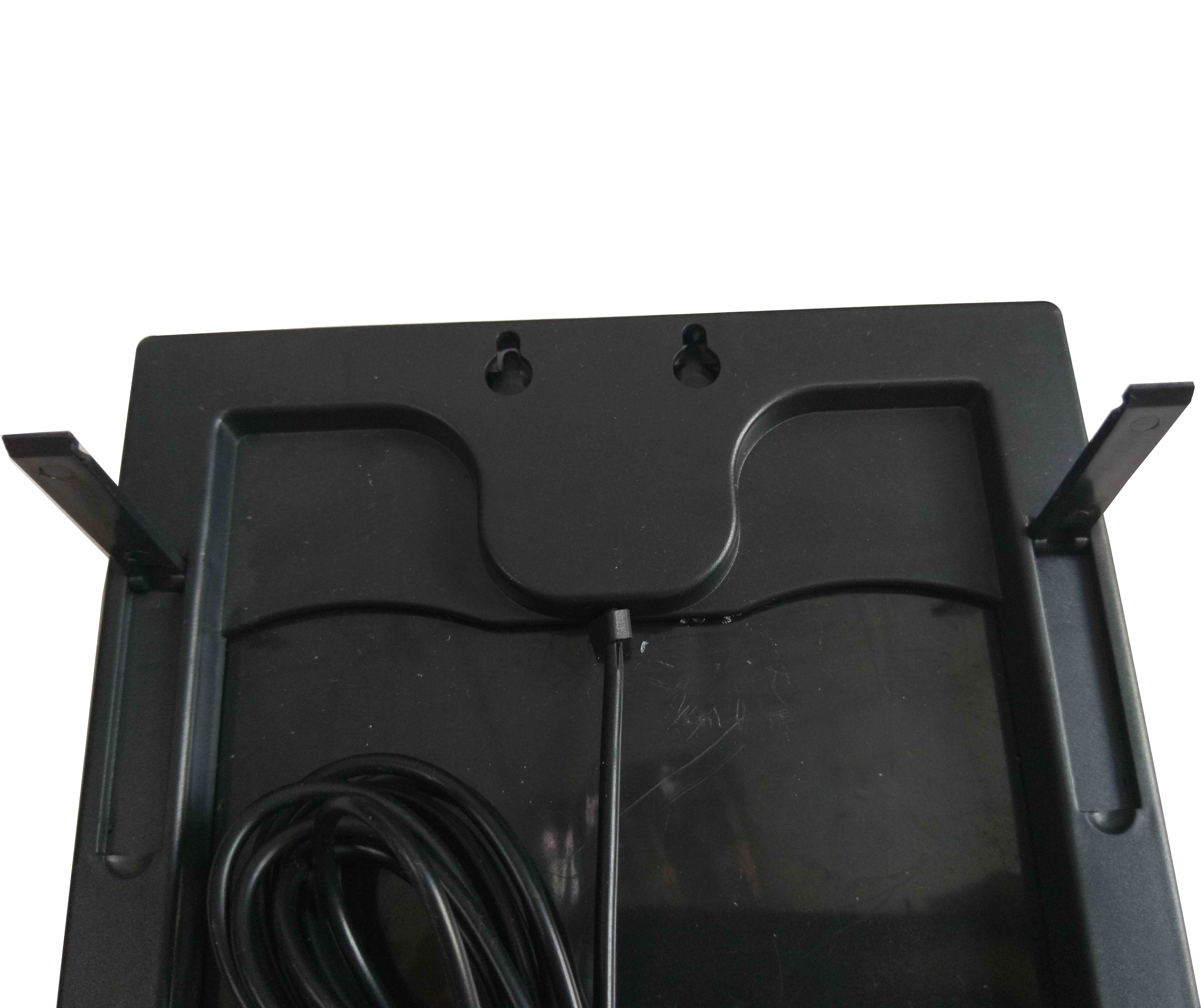

    Glass Laminated Portable Folding Solar Panel Kits Plastic Case Small Size 6W 6V

    Ask Lasest Price
    Brand Name : JYG
    Model Number : JYG-6W-M
    Certification : CE,ROHS
    Price : negotiable
    Payment Terms : Western Union, , T/T, L/C
    Supply Ability : 10000pcs/month
    Delivery Time : 7-15days
    • Product Details
    • Company Profile

    Glass Laminated Portable Folding Solar Panel Kits Plastic Case Small Size 6W 6V

    Wholesale good price glass laminated plastic case small size 6W 6V solar pvpanel


    Electrical Date

    MonoJYG-6-M
    Nominal peak power(Pmax)6W
    Maximum Power Voltage(Vmp)6V
    Maximum Power current(Imp)1A
    Short-circuitcurrent(Isc)1.09A
    Open-cicuit Voltage(Voc)7.2V
    Optimized cell efficiency19.5%-21%

    Limits

    Operating temperature-40°C to +85°C
    Maximum system voltage1000VDC

    Temperature and Coefficients

    NOCT48°C+/-2°C
    Current temperature coefficient%/K0.06+/-0.01
    Voltage temperature coefficientmV/K-(78+/-10)
    Power temperature coefficient%/K-(0.5+/-0.05)

    Additional Data

    Number of cells and type of connection
    Dimensions(MM)270*170.*18MM
    Weight(KG)6W:1.5KG
    Container Loading
