    A Grade Sunpower Thin Flexible Solar Panels 5V 5W For Outdoor Traving / Camping

    Ask Lasest Price
    Brand Name : JYG
    Model Number : JYG-5W-M
    Certification : CE,ROHS
    Price : negotiable
    Payment Terms : Western Union, , T/T, L/C
    Supply Ability : 10000pcs/month
    Delivery Time : 7-15days
    • Product Details
    • Company Profile

    A Grade Sunpower Thin Flexible Solar Panels 5V 5W For Outdoor Traving / Camping

    A Grade sunpower Solar Panels 5V5W foldable portable solar charger kit


    Electrical Date

    MonoJYG-5-M
    Nominal peak power(Pmax)5W
    Maximum Power Voltage(Vmp)5.0V
    Maximum Power current(Imp)1A
    Short-circuitcurrent(Isc)1.1A
    Open-cicuit Voltage(Voc)6V
    Optimized cell efficiency19.5%-21%

    Limits

    Operating temperature-40°C to +85°C
    Maximum system voltage1000VDC

    Temperature and Coefficients

    NOCT48°C+/-2°C
    Current temperature coefficient%/K0.06+/-0.01
    Voltage temperature coefficientmV/K-(78+/-10)
    Power temperature coefficient%/K-(0.5+/-0.05)

    Additional Data

    Number of cells and type of connection

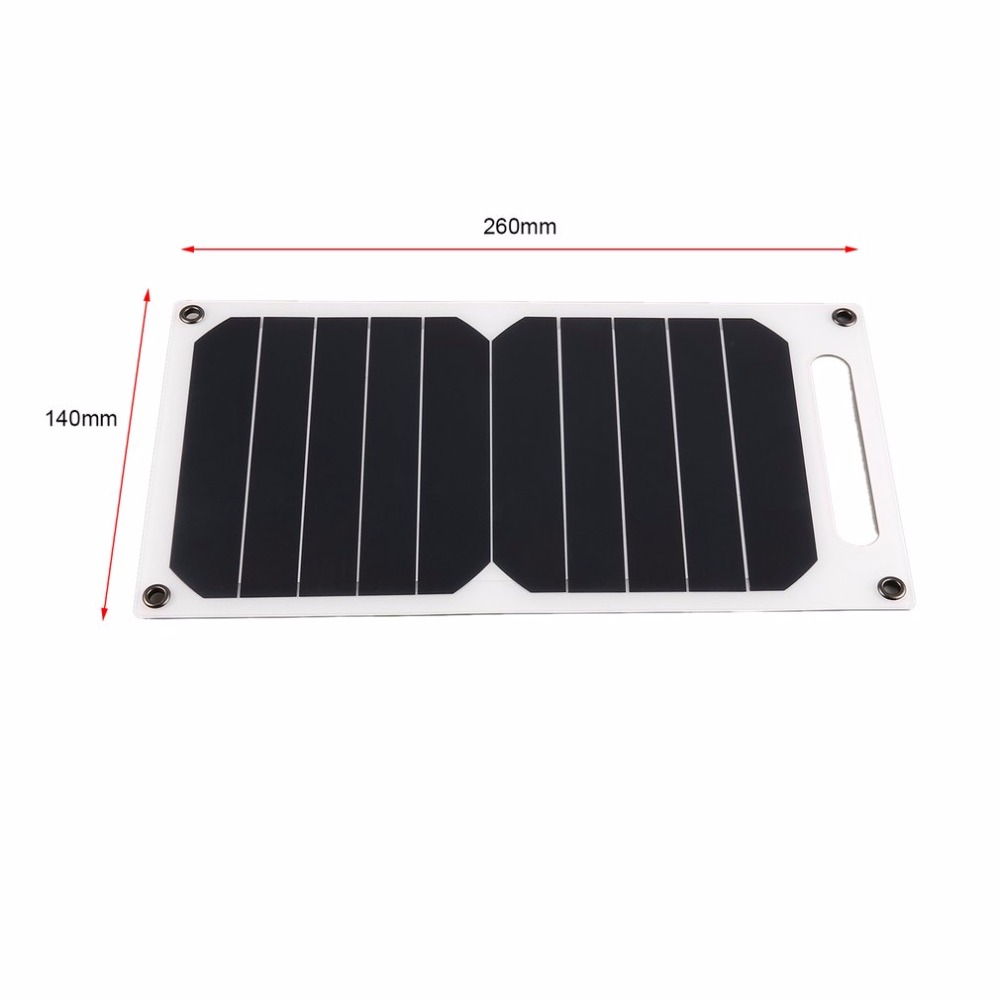

    Dimensions(MM)260*140.*2.5MM
    Weight(KG)5W:0.2KG
    Container Loading

    STC:AM1.5,1000W/㎡,working temperature :25℃,

    Humidity:<80%,

    Basic Cosmetic Specification:

    Ø Delaminations or bubbles do not form a continuous path between any part of the electrical circuit and the edge of module.

    • Not any cracks, foreign materials or dirt of cells.
    • No scratch in the glass or the frame.
    • No pierce in the back sheet.
